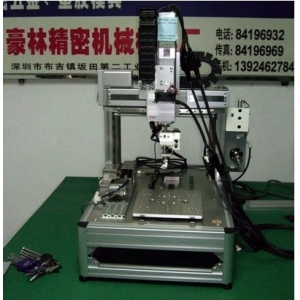

The iron head with cassette design can be changed quickly and use conveniently. Adjust in any angle and position.
The knife gear press a small hole from the side of soldering and let welding flux exudes while the tin is be offered by rule and line.
The programming operation of teaching pendant is easy and convenient. Directly input solder coordinates and implement soldering online/offline programming.
Used for soldering various electronic components such as capacitor, resistor, row-pin on perforation plug-in board etc..
Specifications:
|
Moving Range |
X Axis |
200 mm |
|
Y Axis |
200 mm |
|
|
Z Axis |
50 mm |
|
|
R Axis |
360° |
|
|
Moving Speed |
X Axis |
400 mm/sec |
|
Y Axis |
400 mm/sec |
|
|
Z Axis |
200 mm/sec |
|
|
R Axis |
600°/sec |
|
|
Repeat Accuracy |
±0.02 mm |
|
|
Temperature Range |
0-500℃ |
|
|
SolderWire Range |
0.3-1.6 mm |
|
|
Programming Method |
Teaching Pendant |
|
|
Driving Method |
stepper or servo motor |
|
|
Power Supply |
220V 300W |
|
